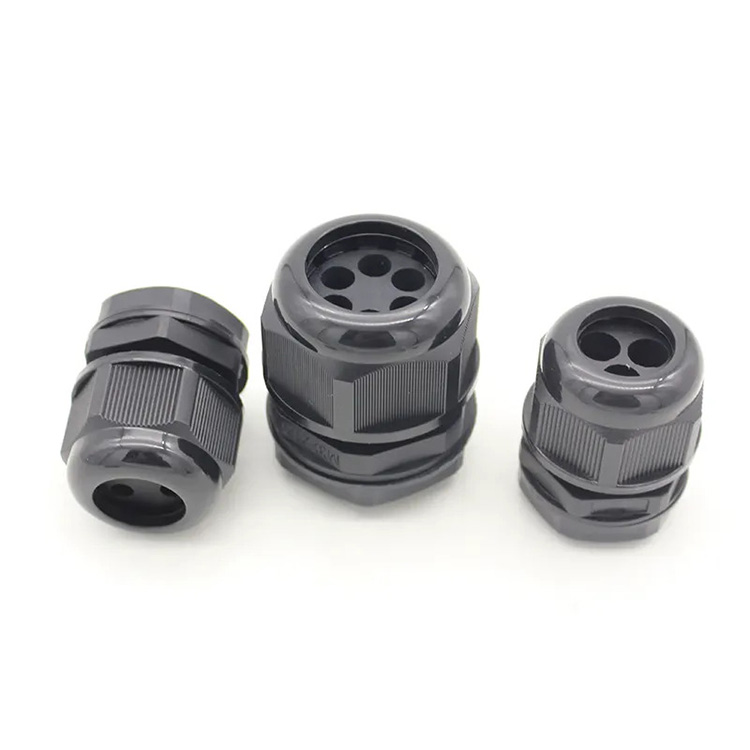

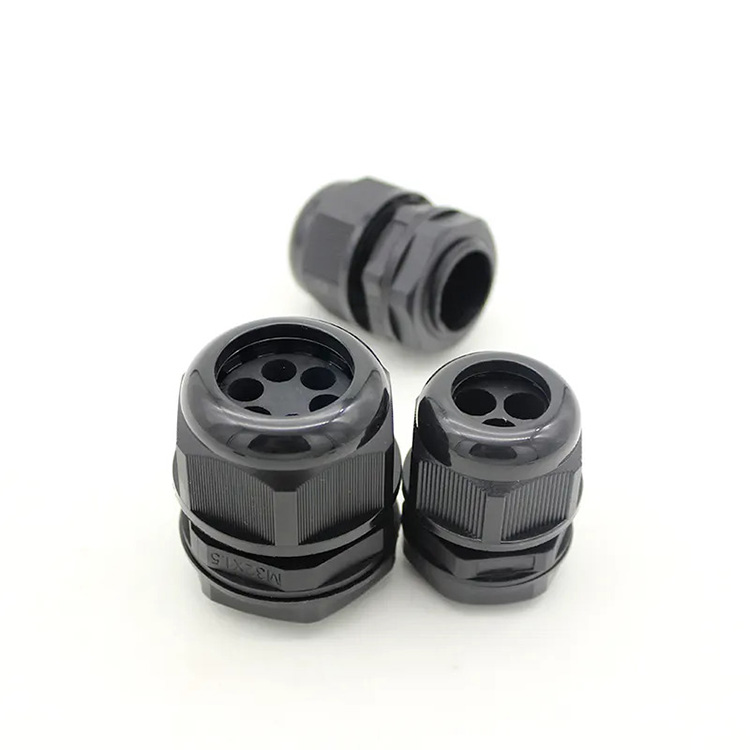

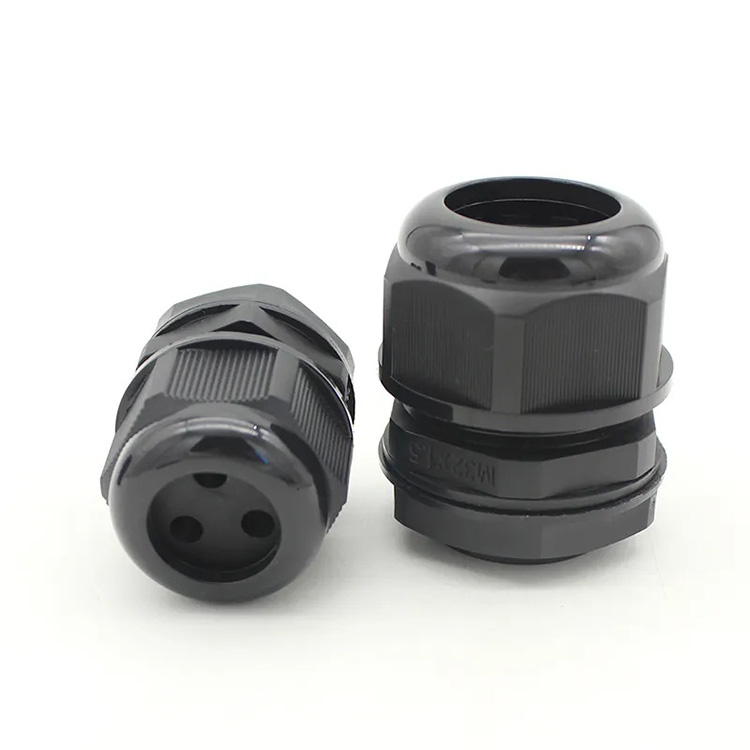

Multi-Holes Nylon Cable Gland

A YAGE multi-holes nylon cable gland is a type of cable gland that is designed to accommodate multiple cables or wires through a single gland. It allows for the entry and secure sealing of multiple cables into an enclosure or panel, providing a neat and organized solution for cable management.

The main features of a multi-holes nylon cable gland include:

Multiple Entry Points: Unlike standard cable glands that have a single entry point, multi-holes cable glands have multiple holes or openings. These openings are designed to accommodate multiple cables or wires, allowing them to be grouped and routed together.

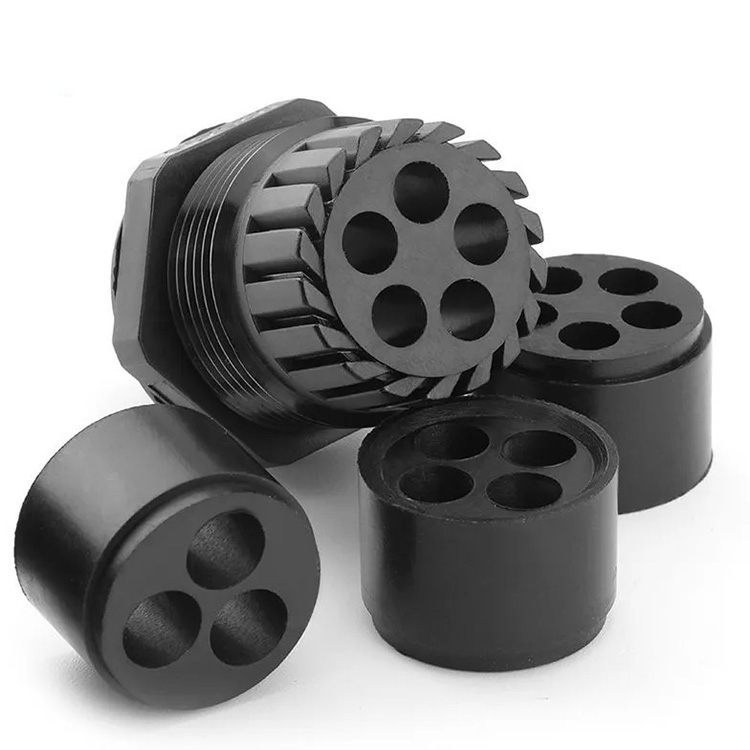

Cable Sealing: Each individual hole in the cable gland is equipped with a sealing mechanism such as a rubber or synthetic sealing ring. These rings create a watertight or dust-tight seal around each cable, providing protection against moisture, dust, and other contaminants.

Compression Nuts and Locknuts: Similar to other cable glands, multi-holes nylon cable glands typically include compression nuts and locknuts. Compression nuts are used to secure each cable individually, providing strain relief and maintaining a tight seal. Locknuts are used to secure the cable gland to the equipment or panel.

Material and Construction: Multi-holes cable glands are commonly made from high-quality nylon material. Nylon offers excellent durability, corrosion resistance, and insulation properties. It is also lightweight and cost-effective.

The installation process for a multi-holes nylon cable gland involves the following steps:

Determine the number and size of cables that need to pass through the gland.

Drill or punch appropriate-sized holes in the enclosure or panel to accommodate the cables.

Insert the cables through the corresponding holes in the cable gland, ensuring that each cable is fitted with a sealing ring.

Secure each cable individually using the compression nuts, providing strain relief and maintaining a tight seal around each cable.

Attach the cable gland to the equipment or panel using the locknut, ensuring a firm and secure connection.

Multi-holes nylon cable glands are widely used in applications where multiple cables or wires need to be routed and protected within a single enclosure. They offer efficient cable management, reduce clutter, and provide a reliable seal to maintain the integrity of electrical connections.
